The Health Connect platform provides a range of data types, mostly covering wellness and fitness use cases, enabling apps in the Android ecosystem to share data without the need for high-cost one-to-one API integrations.
Personal Health Records (PHR) extends this capability to include basic medical data in Fast Healthcare Interoperability Resources (FHIR®) format. FHIR is an open-source global specification describing schema and semantics for medical data published by HL7 (Health Level Seven International).

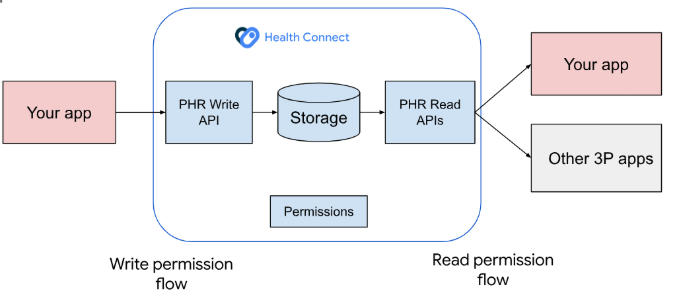

PHR on Health Connect features:
- An API for applications writing medical data.
- A user-facing browser experience for medical data stored in Health Connect as new medical data types, along with fine-grained permissions for allowing downstream reads.
- An API for applications reading medical data based on user-granted permissions.
Limitations
As these APIs are still under development, there are still some limitations and some components aren't fully available.
The PHR APIs are marked with an annotation of
ExperimentalPersonalHealthRecordApi, which indicates that these APIs are still
under development and subject to change.
There are still some limitations and some components aren't fully available:
- The Play Policy for PHR access is still being developed, and apps may need to meet additional requirements before they can be released on the Play Store.
- Some features, such as changelogs-based APIs, have not been developed for PHR APIs yet.
Get Started
Because PHR is a set of new record types in Health Connect, the same process for getting started with Health Connect applies to PHR. See Get started with Health Connect for more information.
If you have been experimenting with the PHR Framework APIs that were initially available, we strongly recommend you transition to Jetpack for an improved developer experience for the following reasons:
- All guides and sample code are written for Jetpack
- Ecosystem tools use the Jetpack APIs
- The API surface is Kotlin native
- Jetpack has improved compatibility support (such as the Feature Availability API)
PHR APIs are made available through Health Connect version 1.1.0-beta02 in Jetpack. Updating your Jetpack dependency to this version requires that apps be compiled against the Android 16 SDK.
Once you're set up and ready to write and read PHR data in your app, see Write medical data and Read medical data.
User experience
General information about the user experience is provided in this section.
Permissions
Requesting read or write medical record permissions behaves similarly to the existing Health Connect permissions screens, but a separate health records screen is shown:
Data browsing
Health Connect also provides basic visualization and browsing of PHR data stored, similar to existing Health Connect data types.
