Create a metric style notification

Android 17 introduces the MetricStyle notifications template to support health and fitness apps, timers, and travel app use cases.

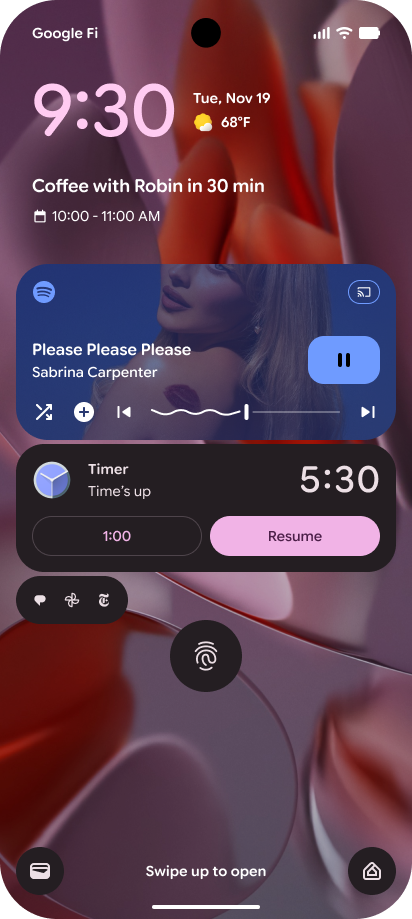

Timer example using MetricStyle
Figure 1: A MetricStyle notification template and Live Update for a clock app

Capabilities

Metric style notifications have the following capabilities:

  • Supports using the setContentTitle method.
  • Doesn't show the context text.
  • Supports up to 3 action buttons.
  • Supports measurement of up to 3 metrics.
    • Each Notification.Metric requires a label, value, and an optional unit.
    • Expanded layout appearance varies depending on the number of metrics taken.

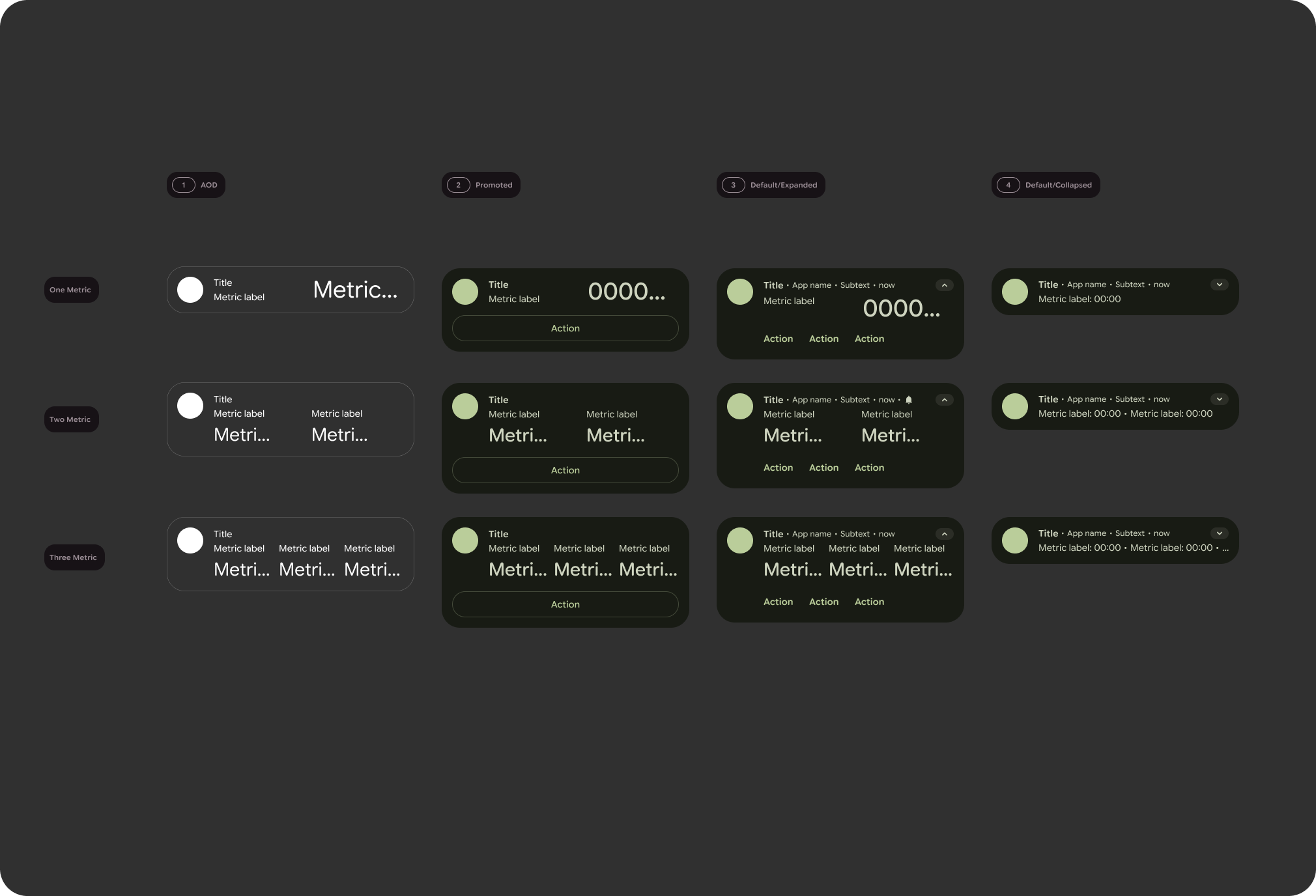

The MetricStyle template in various states
Figure 2: Examples of the MetricStyle template in various states. From left to right, always-on-display (AOD), promoted as a Live Update, default/expanded, and default/collapsed.

Behavior

The metric style notification changes behaviors based on its state:

  • Metric units are appended to the label in the expanded state.
  • The collapsed state's second line shows the metrics contents concatenated into a single line. The second and third metric appear only if they fit completely when concatenated.
  • The unit is omitted in the collapsed state.
  • Each metric receives equal horizontal space, regardless of its content.

As a Live Update

When a metric style notification is promoted to a Live Update, keep in mind the following considerations:

  • No need to provide Notification.Builder#setContentTitle because the metric value is used instead. If no title is provided, the app name is shown.
  • If Notification.Builder#setSubtext is provided, it is shown in the header line, rather than moved to a new line as for other promoted styles.
  • Action buttons have the same pill visual treatment.
