It's a common misconception that using the basic layout structures leads to the most efficient layouts. However, each widget and layout you add to your app requires initialization, layout, and drawing. For example, using nested instances of LinearLayout can lead to an excessively deep view hierarchy. Furthermore, nesting several instances of LinearLayout that use the layout_weight parameter can be especially expensive, as each child needs to be measured twice. This is particularly important when the layout is inflated repeatedly, such as when used in a RecyclerView.

This document shows how to use Layout Inspector and lint to examine and optimize your layout.

Inspect your layout

The Android SDK tools includes the Layout Inspector tool, which lets you analyze your layout while your app is running. Using this tool helps you discover inefficiencies in the layout performance.

Layout Inspector lets you select running processes on a connected device or emulator, then display the layout tree. The traffic lights on each block represent its Measure, Layout, and Draw performance, helping you identify potential issues.

For example, figure 1 shows a layout that's used as an item in a RecyclerView. This layout shows a small bitmap image on the left and two stacked items of text on the right. It is especially important that layouts like this that are inflated multiple times are optimized, as the performance benefits are multiplied.

An image showing a single item in a list: one image and two vertically aligned texts
Figure 1. Conceptual layout for an item in a RecyclerView.

Layout Inspector shows a list of available devices and their running components. Choose your component from the Windows tab, and click Layout Inspector to view the layout hierarchy of the selected component. For example, figure 2 shows the layout for the list item illustrated by figure 1.

An image showing Layout Inspector and the LinearLayout composition
Figure 2. Layout hierarchy for the layout in figure 1, using nested instances of LinearLayout.

Revise your layout

Because the preceding layout performance slows down due to a nested LinearLayout, you might improve performance by flattening the layout—in other words, making the layout shallow and wide, rather than narrow and deep. A ConstraintLayout as the root node allows for such layouts. When you convert this design to use ConstraintLayout, the layout becomes a two-level hierarchy:


          android:contentDescription="An example box"
          app:layout_constraintTop_toTopOf="parent" />

          app:layout_constraintTop_toTopOf="parent" />

          app:layout_constraintTop_toBottomOf="@+id/title" />

Inspection of the new layout looks like this:

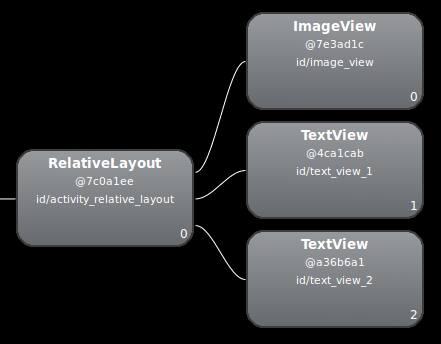

An image showing the 3D Layout Inspector
Figure 3. Layout Inspector 3D mode.

The benefits of this are multiplied, because this layout is used for every item in a list.

Most of the difference is due to the use of layout_weight in the LinearLayout design, which can slow down measurement. This is one example of how each layout has appropriate uses. Carefully consider whether using layout weight is necessary.

In some complex layouts, the system might waste effort measuring the same UI element more than once. This phenomenon is called double taxation. For more information about double taxation and how to prevent it, see Performance and view hierarchies.

Use lint

It's good practice to run the lint tool on your layout files to search for possible view hierarchy optimizations. Lint replaces the layoutopt tool and has greater functionality. The following are examples of lint rules:

  • Use compound drawables. You can handle a LinearLayout that contains an ImageView and a TextView more efficiently as a compound drawable.
  • Merge root frame. If the root of a layout is a FrameLayout that doesn't provide background or padding, you can replace it with a merge tag, which is slightly more efficient.
  • Remove useless leaves. You can remove a layout that has no children or no background—since it's invisible—for a flatter and more efficient layout hierarchy.
  • Remove useless parents. You can remove a layout with a child that has no siblings, isn't a ScrollView or a root layout, and doesn't have a background. You can also move the child view directly into the parent for a flatter and more efficient layout hierarchy.
  • Avoid deep layouts. Layouts with too much nesting are bad for performance. Consider using flatter layouts, such as ConstraintLayout, to improve performance. The default maximum depth for lint checks is 10.

Another benefit of the lint tool is its integration into Android Studio. Lint automatically runs whenever you compile your program. With Android Studio, you can also run lint inspections for a specific build variant or for all build variants.

You can also manage inspection profiles and configure inspections within Android Studio with the File > Settings > Project Settings option. The Inspection Configuration page appears with the supported inspections:

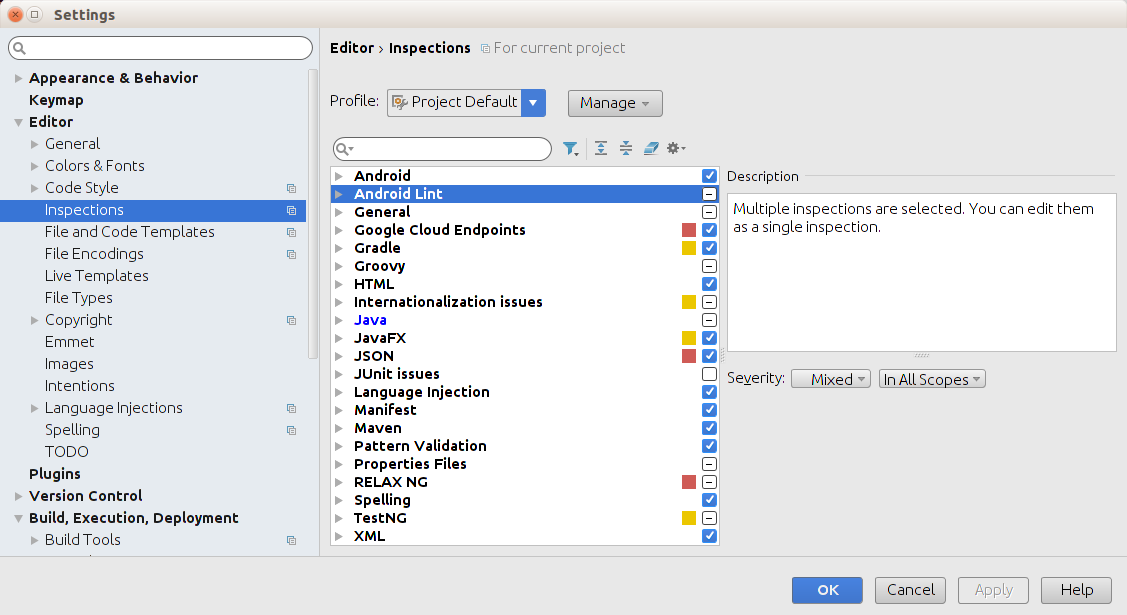

An image showing Android Studio Inspections menu
Figure 4. Inspection Configuration page.

Lint can automatically fix some issues, provide suggestions for others, and jump directly to the offending code for review.

For more information, see Layouts and Layout resource.
